Bryston BP-17³DA Stereo Preamp with DAC - Black

Click on image to enlarge.

Share
SKU: BYBP173D-BLK-17IN
WARNING: for more information go to http://www.P65Warnings.ca.gov
The BP-173DA version of Bryston's bestselling BP-173 preamp includes an extremely high quality built-in Digital to Analog Converter (DAC).
Additional Options
    $5,745.00
    $5,745.00
    Have a Question? Ask Our Experts!
    Shown in silver.

    "The BP-173 is the Bargain Preamplifier to Beat" –Stereophile


    Super-Linear, Super Low Noise Line-Stage Preamp with Built-in DAC

    Bryston's long-awaited BP-17³DA preamp is the company's first to employ the patented Salomie input circuit along with a brand new feature set. It utilizes patented technology that debuted on Bryston's much heralded Cubed Series amplifiers. The BP-17³DA also features a new expanded input/output configuration for enhanced system flexibility. Like all analog components from Bryston, the BP-17³DA is covered by an industry-best 20-year warranty.

    Bryston’s patented super-linear, low noise input buffer jointly developed by Bryston and the late Ph.D. engineer Dr. Ioan Alexandru Salomie significantly reduces noise and distortion. The BP-17³ also has improved RF and audio frequency noise filtering to prevent unwanted anomalies on the power line from interfering even minutely with the audio signal.

    High Quality Built-in DAC

    The BP-17³D version of Bryston's bestselling BP-17³ preamp includes an extremely high quality built-in Digital to Analog Converter (DAC). The DAC can receive PCM digital audio at 44.1 kHz, 48k Hz, 88.2 kHz, or 96 kHz sampling rates and in 16-bit or 24-bit resolution.

    The DAC is a high quality module that shares INPUT 1. That is, INPUT 1 can still operate as a standard analog stereo input pair, but it can also operate as two separate S/PDIF digital coaxial inputs. When the DAC module is installed, digital inputs 1 and 2 (TOSLINK optical connectors) are also connected and activated. In total, when the DAC is installed, four digital inputs are available for use. To select a DAC input, press the DIGITAL SELECT button on the front panel or the BR-2 remote control, then press the button that corresponds with the input you wish to hear. Each input will remember whether analog or digital was last selected.

    "Engaging, Detailed, Tonally Captivating, Utterly Natural Sound"

    "Among new, high-value, line-level preamplifiers, the BP-173 is a welcome find," reports Larry Greenhill in his May 22, 2018 review for Stereophile. "Indeed, the BP-173 costs less than any solid-state preamp listed in Class A of the April 2018 edition of 'Recommended Components.'"

    "It produced engaging, detailed, tonally captivating, utterly natural sound that approached reference quality," continues Larry Greenhill Stereophile. "Matched with a top-quality, compatible power amplifier, the BP-173 is the bargain preamplifier to beat… Highly recommended."

    "With the 17B3, Bryston has finally produced a pre-amp that is an able and sonically talented match for the marque’s power amplifiers," reports Deon Schoeman in his review for AudioVideo, avsa.co.za. "It has the ability to unlock the essence of the music, and to present it with a compelling sense of realism."

    Expanded Input and Output Options

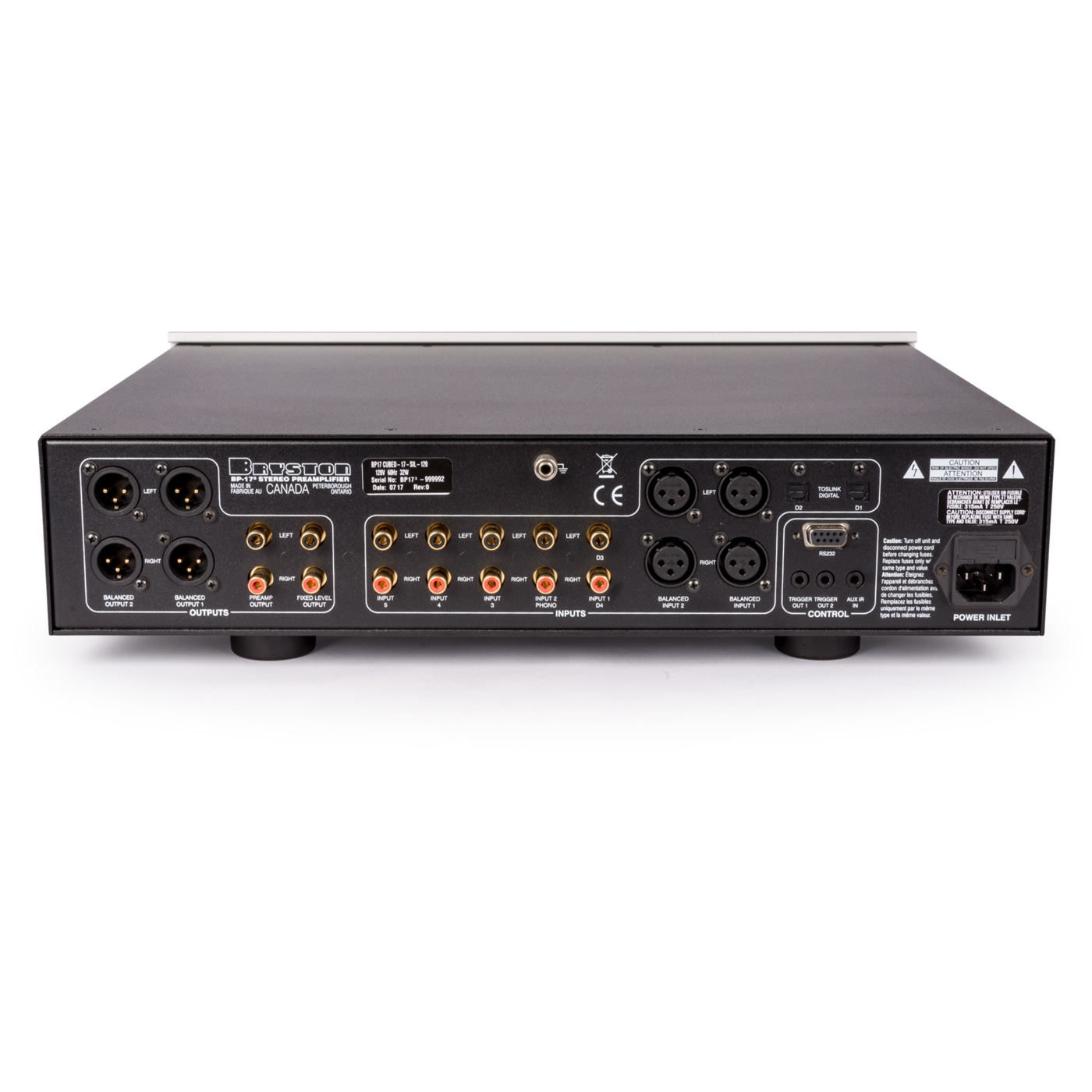

    The BP-17³DA offers expanded input/output options, including two pairs of XLR outputs and two pairs of RCA outputs, making it possible to connect a wide variety of equipment and accommodate numerous system configurations. An RCA tape loop lets users connect a line-level processor or recording device, and one of the XLR output pairs can be internally selected to have either variable (default) or fixed output, enabling users to easily connect a Bryston BHA-1 or other balanced input headphone amplifier.

    The BP-17³DA also includes two pairs of balanced inputs and five pairs of RCA inputs. One pair of unbalanced RCA analog inputs is shared with the internal DAC module as two RCA coaxial digital inputs. Users can select sources, adjust volume and more all from the optional BR-2 remote control or via RS232 connection to virtually any control ecosystem.

    Ultimate Quality

    Bryston applies techniques and employs custom materials in its everyday manufacturing of electronic equipment that are more typically utilized by the military and aerospace industries. Such techniques ensure unit-to-unit consistency that is vastly superior to mass production. Bryston's adherence to the use of proprietary parts, sophisticated construction, and refined testing techniques guarantees superb performance and long-term product reliability.

    Bryston's 20-Year Warranty

    In a world where most things seem to need frequent upgrading, repair, or replacement, Bryston offers a comprehensive, unconditional, and fully transferable warranty on every audio product its makes. The company's 20-year amplifier warranty and five-year digital circuit warranty drives it in a different direction from the typical manufacturer.

    How can Bryston do it? The answer would quickly become apparent if you were to tour Bryston’s plant in Peterborough, Ontario, Canada. State-of-the-art design facilities, with the latest CAD and circuit simulation software, and an inventory of some of the best and most reliable parts on the planet, combine with a manufacturing philosophy that eschews the artifacts of mass production, like robots, moving assembly lines, and, frankly, shortcuts. Every Bryston audio component is handcrafted by people who take great pride in building the very best.

    Rigorous Inspection and Testing

    Bryston doesn't skimp on testing or rush its products through some last-minute go no-go check. At every stage individual parts, completed circuit boards, sub-assemblies, and final assemblies are all put through rigorous inspection and testing procedures.

    Product Features

    Overview
    • Balanced and single ended inputs and outputs
    • Built-in high-quality DAC
    • Fully discrete Class A analog circuitry
    • The patented Salomie circuit found in all Cubed Series amplifiers
    • XLR pair configurable as variable or fixed output (compatibility with the BHA-1)
    • Independent power supply and ground paths for analog and digital circuits.
    • Relay switching on all inputs
    • Programmable pass through feature
    • Software control and balanced action volume control
    • DAC and phono stage options
    Analog Connections
    • Inputs: 2x Balanced Pairs (XLR), 4x Single Ended Pairs (RCA) (Note that the internal DAC shares INPUT 1)
    • Outputs: 2x Balanced Pairs (XLR), 2x Single Ended Pairs (RCA Tape Loop);
    • Control: RS-232 (DB9), IR
    Built-in DAC Module
    • Receives PCM digital audio at 44.1 kHz, 48k Hz, 88.2 kHz, or 96 kHz sampling rates and in 16-bit or 24-bit resolution
    • 2 x TOSLINK optical connections
    • 2 x RCA coaxial digital connections (INPUT 1, shared with analog input)
    • Shared INPUT 1 will remember whether analog or digital was last selected

    Product Features

    Overview
    • Balanced and single ended inputs and outputs
    • Built-in high-quality DAC
    • Fully discrete Class A analog circuitry
    • The patented Salomie circuit found in all Cubed Series amplifiers
    • XLR pair configurable as variable or fixed output (compatibility with the BHA-1)
    • Independent power supply and ground paths for analog and digital circuits.
    • Relay switching on all inputs
    • Programmable pass through feature
    • Software control and balanced action volume control
    • DAC and phono stage options
    Analog Connections
    • Inputs: 2x Balanced Pairs (XLR), 4x Single Ended Pairs (RCA) (Note that the internal DAC shares INPUT 1)
    • Outputs: 2x Balanced Pairs (XLR), 2x Single Ended Pairs (RCA Tape Loop);
    • Control: RS-232 (DB9), IR
    Built-in DAC Module
    • Receives PCM digital audio at 44.1 kHz, 48k Hz, 88.2 kHz, or 96 kHz sampling rates and in 16-bit or 24-bit resolution
    • 2 x TOSLINK optical connections
    • 2 x RCA coaxial digital connections (INPUT 1, shared with analog input)
    • Shared INPUT 1 will remember whether analog or digital was last selected

    Product Specs

    • Dimensions: 17" or 19" wide, 4.55" high, 14" deep

    Product Specs

    • Dimensions: 17" or 19" wide, 4.55" high, 14" deep

    Product Warranty

    20 Years on Analog and Loudspeakers 5 Years on Digital and Cables 3 Years For Motorized Moving Parts Parts & Labor Bryston Warranty Information
