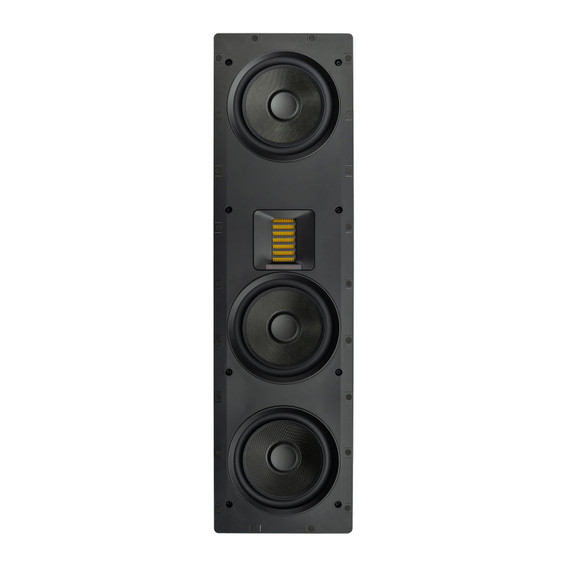

The high-performance three-way MartinLogan Motion XTW6-LCR in-wall speaker is the largest LCR model in the Motion XT CI series.

    $1,599.99
    $1,599.99
    Temporarily Out of Stock. Usually Ships in 5-7 Business Days.
    Have a Question? Ask Our Experts!

    Perfect Choice for a Higher Level of Performance in CI Speakers

    The MartinLogan Motion XTW6-LCR is the largest LCR model in the Motion XT CI series. It includes a unique feature that brings its performance level up even higher. In addition to the FMT XT tweeter and dual 6.5” woven Kevlar Nomex-backed bass drivers, the XTW6-LCR has a dedicated 6.5” midrange driver that brings its acoustic performance to the same level as a traditional floor standing speaker.

    With a rotating tweeter housing, the XTW6-LCR can be used horizontally when needed, and is the perfect choice for systems desiring a higher level of performance without the large footprint of a tower speaker.

    Taking Performance to the Next Level

    The MartinLogan Motion XT CI series takes performance to the next level over the Motion CI series. The Folded Motion XT tweeter gives each model in the Motion XT series even more of the clarity, output, and efficiency that the standard size FMT is famous for.

    With Motion XT, MartinLogan wanted to increase all aspects of performance over the Motion series, so upgrades didn’t just stop at the tweeter. All Motion XT models feature woven Kevlar woofers for increased rigidity and lightness as well as a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing.

    In addition to the larger tweeter, and lighter, stronger woofers, MartinLogan’s design and engineering team has fitted the Motion XT series with a more substantial chassis to strengthen the speaker and provide a more accurate sound, similar to a better cabinet on a traditional speaker. The Nomex layer and the chassis are not something you can see after installation, but it matters to the performance of the speaker. With Motion XT CI, the difference is in the details.

    The Sound of Invisibility: Folded Motion® Tweeters

    MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical one-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular one-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed, and response of a large, dynamic electrostatic panel in a small space.

    Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion. This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.

    This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.

    Woven Kevlar Cones

    All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of MartinLogan's highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, MartinLogan took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing.

    The sealed, dedicated midrange of the XTW6-LCR also allows it to resolve more detail and clarity while increasing its output capability. No matter which Motion XT CI speaker you choose for your room, they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.

    Spring-Loaded Binding Posts

    With easy pre-installation access, MartinLogan's spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

    Micro-Perforated Grilles

    All MartinLogan architectural speakers feature an ultra-low profile, paintable, micro-perforated grille with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation.

    Proprietary Vojtko™ Crossover Networks

    Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are its innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy. Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

    The MartinLogan Sound

    MartinLogan Motion XT CI speakers sound incredible in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, MartinLogan's in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.

    warning iconWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Product Features

    • In-Wall LCR Speaker
    • Driver Configuration: 1 x 1.27” x 2.75” FMT, 1 x 6.5" Midrange, 2 x 6.5” Woofers
    • High Frequency Driver: FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
    • Midrange Driver: One 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap.
    • Woofer: Two 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
    • Crossover Type: 3-way
    • Cabinet Material: Black w/ White Paintable Grill
    • Connector: Push style
    • Components: Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.

    Product Specs

    • Frequency Response: 44 - 25,000 Hz ±3dB
    • Recommended Amplifier Power: Range 50–300 Watts
    • Sensitivity: 93dB @2.83V/ 1 meter
    • Impedance: 4 ohms. Compatible with 8 ohms
    • Crossover Frequency: 260, 2,270 Hz
    • Max Power Handling: 150 Watts
    • Dimensions (overall size): 28” x 7.69” x 3.67”
    • Required Wall Opening (includes tolerance): 6.64" x 27" diameter
    • Projection from Wall Surface: 0.13”
    • Depth Behind Wall Surface: 3.54”
    • Weight: 18.9 lb. each

    Product Warranty

    5 Years Parts & Labor MartinLogan Warranty Information
