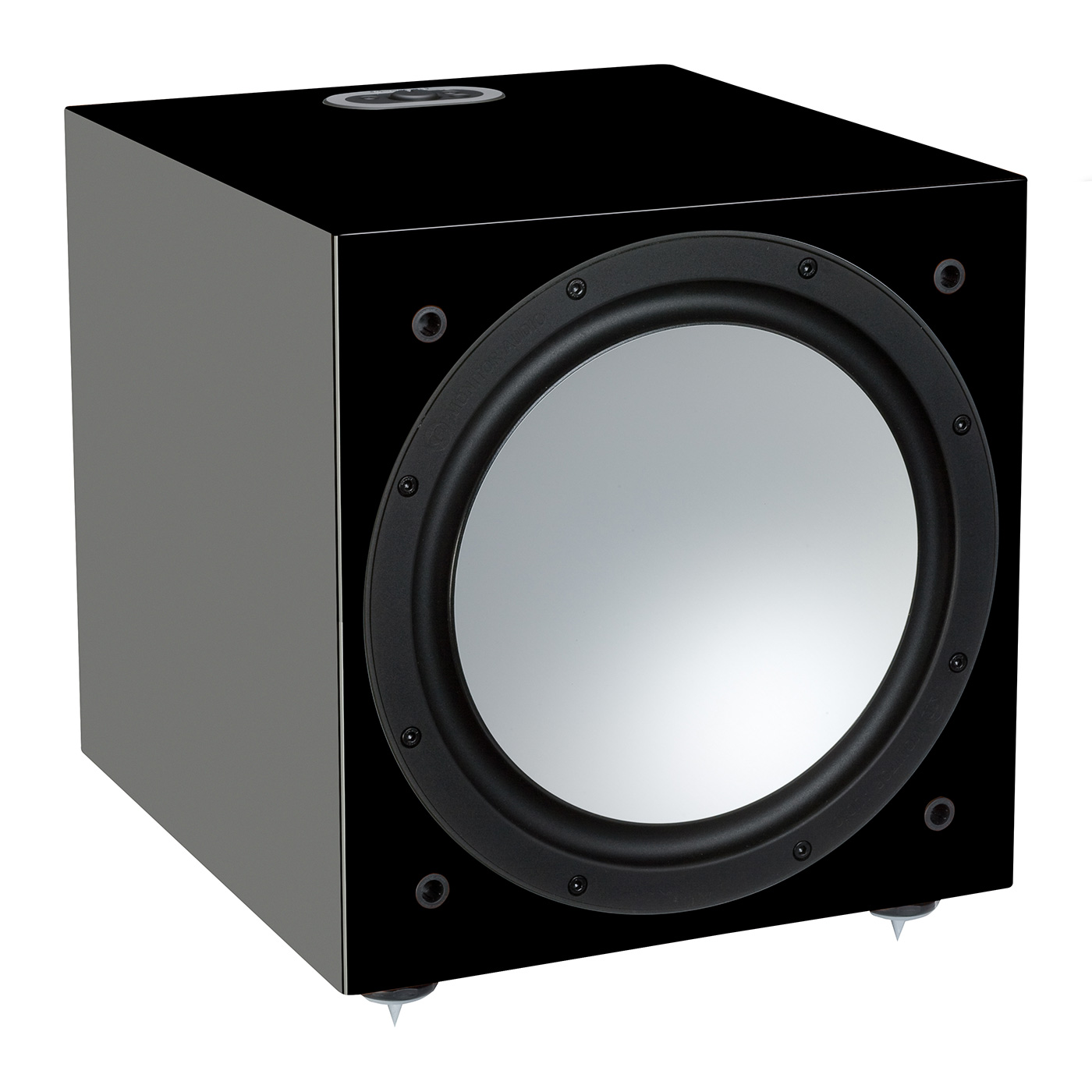

Monitor Audio Silver W12 Subwoofer

Delivers Seismic Bass Way Down to 22 Hz

The Monitor Audio Silver Series subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12-inch driver. The Silver W-12’s over-specified driver assembly employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. A heavy-duty die-cast basket not only holds the massive system rigidly together, but also assists thermal sinking to keep the driver cool.

For the Silver W-12 subwoofer, Monitor Audio specified a 500-watt Class-D amplifier and power supply module from highly-regarded amplifier specialist Hypex. This provides incredible headroom and utilizes advanced switch mode power conversion techniques. A powerful DSP has been employed to deliver the best performance and filter characteristics, while running the unique APC (Automatic Position Correction) system.

The APC is a completely in-house development, designed to automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response, optimizing it for the room and position. This is a simple and quick automated process that is a complete revelation to the installer and ensures the user can enjoy the subwoofer quality without positioning restrictions.

At the heart of the Silver W-12 lies a sophisticated 32-bit micro-controller, monitoring performance thousands of times per second in order to ensure that the system can deliver the best possible bass. It will never become over-driven or distorted, even at maximum power.

Monitor Audio's Silver 6G Series

Revered by audiophiles around the globe, Monitor Audio's award-winning Silver Series enters its sixth generation with a host of new features to make it the best-performing ever. Taking hi-fi and home theater performance to a new level. The new Silver 6G series utilizes technological advances derived from Monitor Audio's top-of-the-line Platinum Series II. It features a completely redesigned 1" gold dome tweeter for precise treble. And it looks as it good as it sounds, offering stunning real wood veneer, piano lacquer, and contemporary satin white finishes to suit every setting.

Continuous Uninterrupted Dish Drivers

Unlike conventional driver cones, the new C-CAM (Ceramic-Coated Aluminum/Magnesium) RST (Rigid Surface Technology) bass and midrange drivers take the form of a continuous uninterrupted dish. Strengthened by a uniquely dimpled surface, their greater area radiates more sound, and driven by a larger voice coil and motor, delivers greater efficiency and a cleaner, more accurate response.

Product Features

Ultra long-throw 12-inch driver featuring ‘dished’ C-CAM cone
Triple suspension for ultimate linearity ensuring control at high power and excursions
Oversized black anodized 3-inch voice coil which provides high power-handling and low distortion
Powerful 500 W RMS Class-D amplifier with switching power supply provides instantaneous delivery of high current when required
DSP processing with all control features and crossover performed digitally
Automatic Position Correction plus automatic room setup feature using microphone for simple system optimization
USB for firmware updates
Three preset EQ mode settings (Music, Movie, Impact)
Top-mounted control panel and microphone input for easy access to main features
12 V trigger provides switching control from AV amp or processor
Solid 1-inch-thick MDF cabinet construction
Heavy radial cabinet bracing
Selected premium-quality wood veneers in high-gloss lacquer and Satin White finishes

Product Specs

Low Frequency Response: 20 Hz (Typical IEC room)
Upper Frequency Limit: 40 – 120 Hz variable
Low Pass Filter Alignment: Active 4th order 24 db/octave
Amplifier Power Output: 500 W continuous
Amplifier Classification: Class-D amplifier with switched-mode power supply (SMPSU)
Bass EQ Profiles: 1: Movie; 2: Music; 3: Impact
Phase Control: 0 & 180 degrees
Auto Sensing: Line Level >2 mV
Input Level Requirements: Standby after 20 minutes if no signal sensed
12 V Trigger Input: 5 – 12 V via 3.5 mm mono mini-jack socket
Cabinet Dimensions (excluding grille and amp): 13-3/8" x 13-3/8" x 14-15/16"
Dimensions (including grille, amp and feet): 14-9/16" x 13-3/8" x 16-1/8"
Mains Input Voltage: 110 – 120 Vac / 220 – 240 Vac 50/60 Hz (Electronically Auto selected)
Power Consumption: 400 W / 0.5 W in Standby (ErP approved)
Weight (unpacked): 44.1 lbs.
